DTK-BNHW portable coal quality analyzer

Brief introduction of fast coal quality analyzer

Coal ash and coal moisture are important indicators of coal quality. The chemical burning method is usually used for inspection, but it has a relatively large hysteresis. The severe lag in the test results is far from meeting the needs of modern large-scale production.
With the rapid improvement of modern science and technology and the continuous popularization of nuclear technology and microwave measurement technology applications, new
methods have been provided to solve the rapid and real-time online
detection of coal quality.
The company has absorbed the successful experience of existing domestic and foreign related products and successfully developed DTK series of fast coal quality analyzers, among which the newly developed DTK-BNHW passive portable fast coal quality analyzer is based on the actual needs of users. It is light in weight, easy to operate, and does not contain
radioactive sources. It can quickly detect incoming coal and adapt
to Current users need to quickly and conveniently detect coal quality. The DTK series of fast coal quality analyzers can be applied to coal mines, coal-fired power plants, coal washing plants, coal blending plants, coking plants, steel plants, cement plants and coal docks, etc. Portable starting with DTK-BN, H stands for ash function, Wstands for moisture function, N stands for Passive detection

Characteristics a. Form:

a.Portable (DC power supply, built-in lithium battery)
b. Use occasions: train carriages, automobile carriages, piling coal

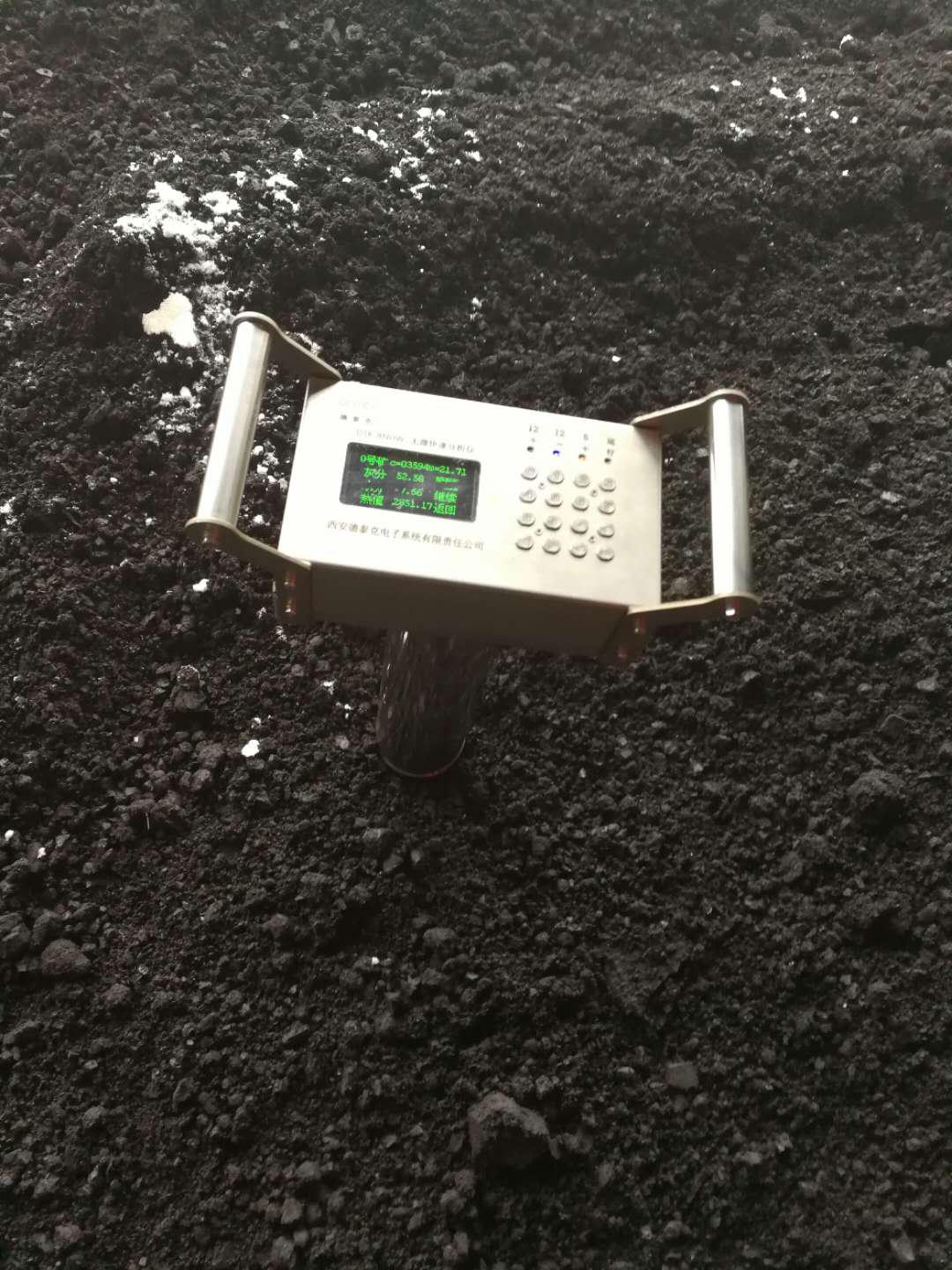

c. Measurement method: directly inserted into coal (measured below 300-400mm in depth) d. Stored data: 500 items
e. oled display
f. Height: 900 (mm)

Technical indicators

a. Ash content error ≤1.0% (clean coal) ≤2.5% (thermal coal)
b. Measuring depth ≥400mm
c. oled LCD display. d. Measuring time. ≤40S
e. Weight≤6Kg.
f. Power consumption 5W
g.304 stainless steel body
