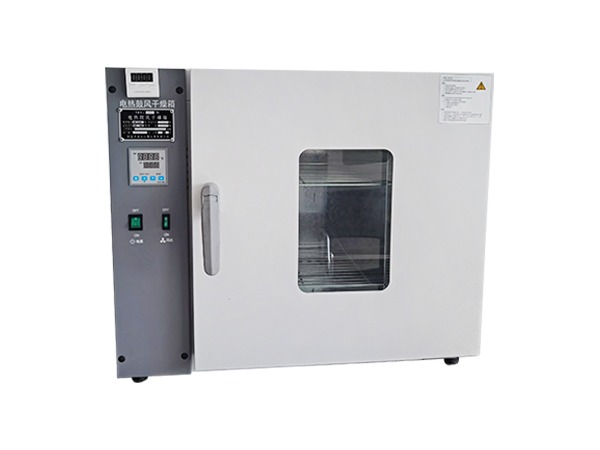

Electric heating blast drying oven
PRODUCT PARAMETERS
Description
The Electric Heating Convection Oven, also known as a Hot Air Oven, is a high-performance drying appliance designed for efficient and uniform drying of various materials. Suitable for laboratories, research institutions, and industrial settings, this oven utilizes convection heating to ensure quick and even drying results. Discover the advantages of our Electric Heating Convection Oven for your drying needs.

Technical indicators of electric constant temperature drying oven
model | 101-0A | 101-1A | 101-2A | 101-3A |
Working voltage | 220V;50Hz | 220V;50Hz | 220V;50Hz | 220V;50Hz |
Temperature range | 50-250℃ | 50-250℃ | 50-250℃ | 50-250℃ |
Temperature fluctuation | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
Temperature uniformity | ±2.5% | ±2.5% | ±2.5% | ±2.5% |
Total power | 1.6KW | 2KW | 2.4KW | 4KW |
Workroom dimensions (height x width x depth) | 350*350*350mm | 450*450*350mm | 550*550*450mm | 750*600*500mm |
External dimensions (height x width x depth) | 660*530*670mm | 760*530*670mm | 860*630*770mm | 1250*840*640mm |
Total net weight | 50kg | 60kg | 75kg | 90kg |
Shelf load capacity | 15kg/piece | 15kg/piece | 15kg/piece | 15kg/piece |
Electric constant temperature drying oven Performance characteristics
The heating constant temperature system in the box is composed of a digital temperature controller, an electric heater and a low-noise motor; the temperature control is accurate, intuitive and easy to read;
The working room temperature can be kept constant between room temperature and 300℃; the double-layer tempered glass observation window on the box door is convenient for observing the heated items in the box.
Application range of electric constant temperature drying oven
Suitable for measuring moisture in coal, drying items, and other applications requiring drying and heat treatment.
FAQs
Our equipment is in line with national standards
We have complete video tutorials and you can learn from them one-on-one.
We provide a variety of analytical instruments including calorimeters, fast intelligent sulfur analyzers, muffle furnaces, microcomputer time and temperature program controllers, ignition point testers, explosion point testers, ash melting point testers, hydrocarbon element analyzers, gelatin layer testers, sample makers, crushers, combined sample makers, drying oven series, adhesion index testers, etc.
We cooperate with many logistics companies to choose the appropriate delivery method according to the characteristics of the goods and customer needs.
Usually shipped by sea and air.
Our standard products are manufactured to uniform designs and specifications and currently do not support customization.
If you have special needs, we recommend that you consider our existing product lines, as one of our products may be able to meet your needs.
