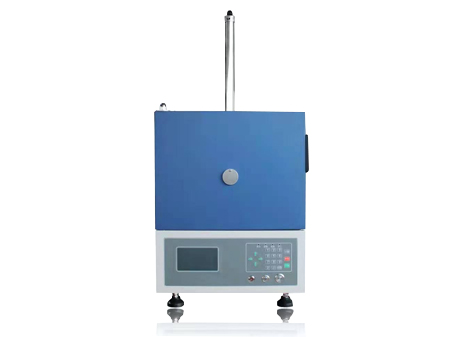

XD-MF350 Muffle Furnace

Discover the Unmatched Performance of the XD-MF350
The XD-MF350 Muffle Furnace is a state-of-the-art heating apparatus designed to meet the stringent requirements of research and industrial laboratories worldwide. With its advanced features, exceptional build quality, and user-friendly operation, the XD-MF350 is the ideal choice for a wide range of high-temperature applications, from materials testing to chemical analysis.

XD-MF350 Muffle Furnace Technical Parameters

XD-MF350 Muffle Furnace Technical Features

1.With sound and light prompts: Every time a temperature point is reached or the constant temperature time is completed, the instrument will issue a prompt sound, and the indicator light on the panel will flash, prompting the user to set out or sample.

2.The ceramic fiber furnace is light in weight, has good insulation and heat preservation, the instrument shell is not hot to the touch, the no-load power is low, and the power saving effect is significant; the constant temperature area is wide, PID temperature control, stable temperature, fast heating and cooling speed, can rise to 920℃ in 15min, and multiple tests can be repeated in one day.

3.It is equipped with national standard crucibles and crucible racks, and can be put into use after plugging in the power supply.

4.The large LCD touch screen displays the program with clear display.

5.Users can modify the temperature and time of each heating section of ash and volatile matter.

6.High precision: PID temperature control algorithm is adopted, with high temperature control accuracy and stable and reliable performance.

7.Parameters are automatically saved: power failure will not be lost, eliminating the need to enter parameters such as temperature and time every time power is turned on.

8.With furnace door lock: ensure that the furnace door is not opened intentionally during the experiment, resulting in the invalidation of this test.

9.Open door power off: the furnace wire is automatically powered off when the furnace door is opened to ensure personal safety. The fast ash test is equipped with a special fast ash bracket, and the furnace temperature can be maintained during the slow ash ash ash process.

10.Flexible selection of test categories: There are three special test programs for slow ash, fast ash, and volatile matter. The instrument automatically completes the temperature control and constant temperature of each temperature point, with less human intervention. A “general” setting temperature control program, the user can set it according to their own needs, and the instrument can complete 3 stages of temperature control and constant temperature according to the set value.

11.Friendly interface: keyboard input, Chinese character LCD screen display. During the test, the test category, the temperature and time parameters set for the category, as well as the current furnace temperature and stage duration are displayed.

XD-MF350 Muffle Furnace Technical Applications:

This product is mainly used in:Ashing and combustion analysis、Sintering of ceramics and metals、Heat treatment of materials、Melting of metals and alloys、Crystal growth、Laboratory research and education
