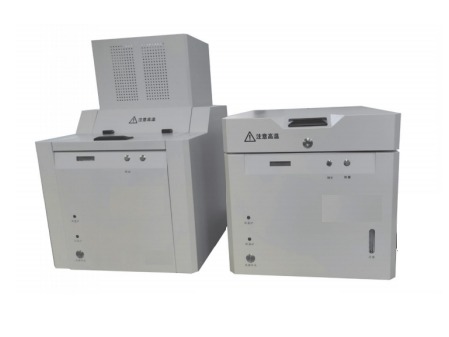

XDGF-AV8000 Fully Automatic Industrial Analyzer

The XDGF-AV8000 fully automatic industrial analyzer is a precision instrument designed to provide comprehensive and accurate analysis of a wide range of materials in industrial environments. Designed using the latest technology with a strong focus on reliability and efficiency, this analyzer is ideal for international industries seeking to enhance quality control and process optimization.

XDGF-AV8000 Fully Automatic Industrial Analyzer features

Testing time	90-120min Complete the analysis of moisture, ash and volatile matter of 20 samples
Number of samples (pieces/time)	20
Temperature control range (℃)	Room temperature~1050
Temperature control accuracy (℃)	±1
Temperature resolution (℃)	0.1
Weighing accuracy (g)	0.0001
Test accuracy	Complies with GB/T212-2008 and US ASTID5142-2009 standards
Power (kw)	Part I: 4 kW Part II <5 kW
Weight (kg)	Part I 60 Part II 55
Dimensions (mm)	Part I 580x580x870 Part II 580x580x530

XDGF-AV8000 Fully Automatic Industrial Analyzer features

一、High efficiency

1) The test can be carried out after the machine is turned on, and the analysis of the three indicators of moisture, ash and volatile matter of 20 samples can be completed within 90-120 minutes. Two batches of samples can be completed in 8 hours.

2) The two main machines work in parallel (or can work separately), and the moisture, ash and volatile matter are tested at the same time. After the sample is placed, the whole process can be unattended, and there is no need to replace the crucible or open the crucible cover in the middle.

3) The weighing mechanism and lifting are more stable, and the weighing data is more accurate.

二、Strong reliability

1) The internationally advanced DSP control technology and the new generation of adaptive control technology are adopted to make the instrument control more real-time and reliable.

2) The round well-shaped high-temperature furnace has a more uniform and stable temperature distribution, which solves the technical problem of uneven and unstable furnace temperature caused by frequent opening of the furnace door in the assembly line working mode.

3) There is no need to open the furnace door frequently, and there is no need to frequently move the crucible from the combustion plate to the weighing plate. Using thermobalance technology, dynamic calibration with blank crucibles in the same atmosphere ensures the accuracy of weighing and avoids the problem of inaccurate weighing caused by inconsistent crucible temperature in the assembly line.

4) Classic slow ash can be used for each ash test, which fully meets the national standard requirement that the furnace temperature rises to 500℃ within no less than 30 minutes, ensuring the accuracy of ash test.

三、Easy to use

1) There are a variety of test methods for users to set at will, including the national standard arbitration method and rapid method, which can also be set and defined by the user.

2) There are a variety of sample weighing methods, and users can place samples continuously or individually.

3) Pneumatic automatic rear flip cover opening structure, more humanized design, easy to operate.

4) Data query, statistics, and printing can be performed during the experiment, which is more convenient to use.

四、Good safety

1) With a silent air pump, experiments can be carried out without oxygen or nitrogen, solving the problem of high noise and affecting physical and mental health using compressor pumping.

五、Durable

1) Imported electronic balance is used to ensure stable test performance.

2) Imported integral heating furnace is used, which has fast heating speed, energy saving and short test time.

3) Ceramic turntable, ceramic shaft, ceramic sample delivery rod and ceramic weighing rod are all made of imported materials to increase the service life of components.

4) Imported direct slide rail is used to ensure long-term stable and reliable operation of the instrument.

六、Convenient maintenance

1) The instrument has an automatic detection function to handle simple equipment failures in a timely manner.

Fully Automatic Industrial Analyzer Application Areas

It is suitable for the automatic analysis of moisture, ash, volatile matter and fixed carbon of coal char and other materials. It can be applied to the analysis of moisture, ash and volatile matter of solid fuel/waste, the thermal loss rate analysis of incineration slag, organic matter, thermogravimetric analysis of sludge drying process, carbon content analysis of fly ash/ash residue, etc.
