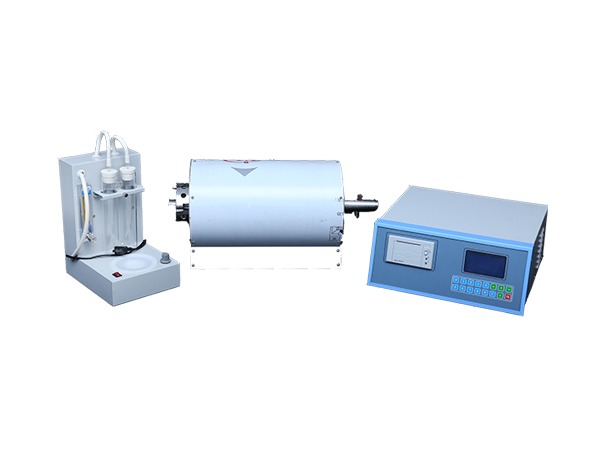

XDL-6A-Intelligent Chinese Character Sulfur Determination Instrument
PRODUCT PARAMETERS
Description
The XDL-6A Intelligent Chinese Character Sulfur Determinator is a sophisticated analytical instrument designed for accurate and efficient sulfur content measurement in various materials. Ideal for quality control in industries such as mining, metallurgy, chemical, and environmental testing, the XDL-6A offers a unique blend of technology and ease of use, with a focus on Chinese language support for international users.
The sulfur analyzer adopts embedded technology and is mainly used to determine the total sulfur content in coal, steel and various minerals. It is a laboratory instrument for coal, electric power, metallurgy, chemical industry, building materials, commodity inspection and other departments.
XDL-6A-Intelligent Chinese Character Sulfur Determination Instrument Technical Parameters
| Sulfur measurement resolution | 0.01 |
| Test time | generally (4-8) minutes; (automatically determined according to the set time and the difficulty of decomposition of the test sample) |
| Sulfur measurement range | 0.1-99% |
| Test temperature | 1150±5℃ (coal), 920±5℃ (oil); (freely set) |
| Temperature measurement accuracy | 0.5 level |
| Heating time | about 20 minutes to 1150±5℃ |
| Test method | coulometric titration |
| Qualification | in accordance with GB/T214-2007 |
| Accuracy | within the allowable error range of standard samples |
| Data storage | no less than 1,000 sample results; (including sample number, sample weight, total sulfur, moisture, test start time and date, test end |
| Power supply | 220V±10% 50Hz |
| Power | ≤3.5kw |
| Instrument size | 500mm×500mm×750mm |
| Instrument weight | 35kg |
XDL-6A-Intelligent Chinese Character Sulfur Determination Instrument Features
1、The embedded ARM chip is used as the main control chip and equipped with a 4.3-inch true color touch LCD screen to achieve simpler and more direct human-computer interaction;
2、Graphical buttons and real-time status prompts make the instrument easy to use;
3、Current fault diagnosis instructions and processing suggestions are provided in the form of hyperlinks, which simplifies the maintenance of the instrument;
4、The electrolytic circuit design greatly improves the resolution of sulfur measurement. The new electrolytic circuit design greatly improves the resolution of sulfur measurement.
XDL-6A-Intelligent Chinese Character Sulfur Determination Instrument Applications
The XDL-6A Intelligent Chinese Character Sulfur Determinator has a wide application range, making it suitable for analyzing sulfur content in various materials including coal, ore, oil, soil, and other diverse samples, across industries such as mining, metallurgy, chemical, and environmental testing.
FAQs
Is the test accurate?
Is the operation easy? Is there a video tutorial?
What types of products can we provide？
What logistics do we use to ship？
Can it be customized according to our requirements?
