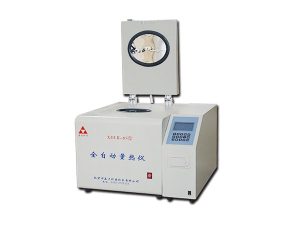

XDLR-Q600 Single Control Fully Automatic Calorimeter

XDLR-Q600 Single Control Fully Automatic Calorimeter adopts the following standards:

GB/T 213-2008 “Method for determination of calorific value of coal”

GB/T 384-1981 “Method for determination of calorific value of petroleum products”

GB/T 30727-2014 “Method for determination of calorific value of solid biomass fuel”

GB/T14402-2007 “Determination of combustion calorific value of combustion performance of building materials and products”

GB/T 30991-2014 “General technical conditions for intelligent oxygen bomb calorimeter”

JC/T 1005-2006 “Method for determination of calorific value of cement black raw meal”

JJG 672-2018 “Verification procedures for oxygen bomb calorimeter”

ASTM D5865-13 “Method for determination of calorific value of coal and coke”

ISO 1928:2009 “Determination of calorific value of solid mineral fuels”

CEN/TS 14918 “Determination of calorific value of solid biofuels”

BS EN 15400-2011 “Solid recovered fuels – calorific value test”

IS:1350-1970 “Determination of coal and coke”

XDLR-Q600 Single Control Fully Automatic Calorimeter　Technical Parameters

Temperature measurement range	5～40℃
Temperature resolution	0.0001℃
Test accuracy	≤0.15%
Accuracy	Better than national standards
Test time	Conventional method: ≤16min Fast method: ≤11min
Heat capacity fluctuation	≤0.20% within one year
Lifting method	automatic lifting
Oxygenation method	automatic oxygenation
Water level	visible water level
Placement method	vertical, horizontal
Quantitative method	measuring cup quantitative
Power	<1kW
Dimensions	570mm (length) × 550 mm (width) × 530 mm (height)
Power supply voltage	AC220V±22V 50Hz±1Hz
Weight	68kg

XDLR-Q600 Single Control Fully Automatic Calorimeter Product Features

More convenient operation：High degree of automation, automatic and accurate water volume in the inner cylinder; automatic adjustment and tracking of system temperature; less manual operation content, reducing human errors and labor intensity, and improving work efficiency.

Fast experiment：Unique three-head thread and corrosion-resistant oxygen bomb (can burn biomass), short test time.

Good stability：The quantitative water cup ensures the accurate and stable water volume in the inner cylinder, ensures the consistency of each measurement result, and has a built-in automatic refrigeration cycle control device. Different inner and outer cylinder temperature control methods can be selected according to needs, with a built-in filtration system to prevent system blockage, long-term stability of instrument heat capacity, and heat capacity change ≤0.2%.

Powerful software system：Experiment login permission management, automatic recording of experimental process, traceability. Sample code and weight information are automatically transmitted; test results are backed up and uploaded; anti-tampering experimental data, suitable for fuel control system. It has a self-diagnosis function and is easy to maintain.

Reserved standard interface: convenient for connection with the laboratory control system.
