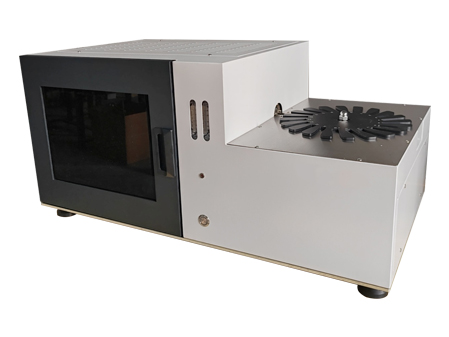

XDS-W300 Automatic Horizontal Coulometric Sulfur Analyzer
PRODUCT PARAMETERS
Description
This XDS-W300 is a state-of-the-art, fully automatic horizontal coulometric sulfur analyzer designed to deliver high-speed, high-precision measurements. This instrument is engineered to enhance the efficiency and productivity of laboratories and industries that demand reliable and automated sulfur analysis.
XDS-W300 Automatic Horizontal Coulometric Sulfur Analyzer Technical Parameters
| Number of samples (pieces/time) | 20 or single sample |
| Sulfur measurement range | 0.01%~40% |
| Resolution | 0.001% |
| Sample weight (mg) | 45~55 (coal), 80~100 (oil) |
| Minimum test time for a single sample (min) | 3, 5min/sample |
| Working furnace temperature (℃) | 1150 (coal, coke), 920 (oil) |
| Temperature control accuracy (℃) | ±1 |
| Power (kw) | ＜3 |
| Weight (kg) | 45 |
| Dimensions (mm) | 988x520x375 |
XDS-W300 Automatic Horizontal Coulometric Sulfur Analyzer Features
1、Adopting DSP new technology and hardware integration circuit, strong real-time performance and reliability, convenient software upgrade.
2、Adopting horizontal imported material furnace and national standard porcelain boat, fully meeting national standard requirements.
3、High automation, the operator only needs to prepare samples (up to 20 or single samples) and put them on the sample tray, and the instrument automatically completes the analysis.
4、Self-test can be performed when the machine is turned on, fault information can be displayed, and maintenance suggestions can be provided.
5、Convenient liquid discharge control, convenient for cleaning the electrolytic cell and replacing the electrolyte.
6、Large-capacity drying tube, reducing the frequency of desiccant replacement.
7、Adopting imported air pump, stable flow and low noise.
8、Can be connected to the Internet and external electronic balance.
9、Adopting multiple shock-absorbing sample delivery mechanism to ensure the stability and reliability of sample delivery, and no sample card sample drop.
10、Adopting large-electrode electrolytic cell to ensure the repeatability and accuracy of test results.
XDS-W300 Automatic Horizontal Coulometric Sulfur Analyzer Applications
The XDS-W300 is ideally suited for a broad spectrum of applications, including quality control and process monitoring in the petroleum, chemical, and environmental sectors. It is particularly valuable for the accurate determination of sulfur content in fuels, crude oil, lubricants, and other petrochemical products.
XDS-W300 Automatic Horizontal Coulometric Sulfur Analyzer Adopts The Following Standards
GB/T 214-2007 “Determination of total sulfur in coal”
Replaces GB/T 28732-2012 “Determination of total sulfur in solid biomass fuels”
Replaces ISO 16994-2015 “Determination of sulfur and chlorine in solid biofuels”
