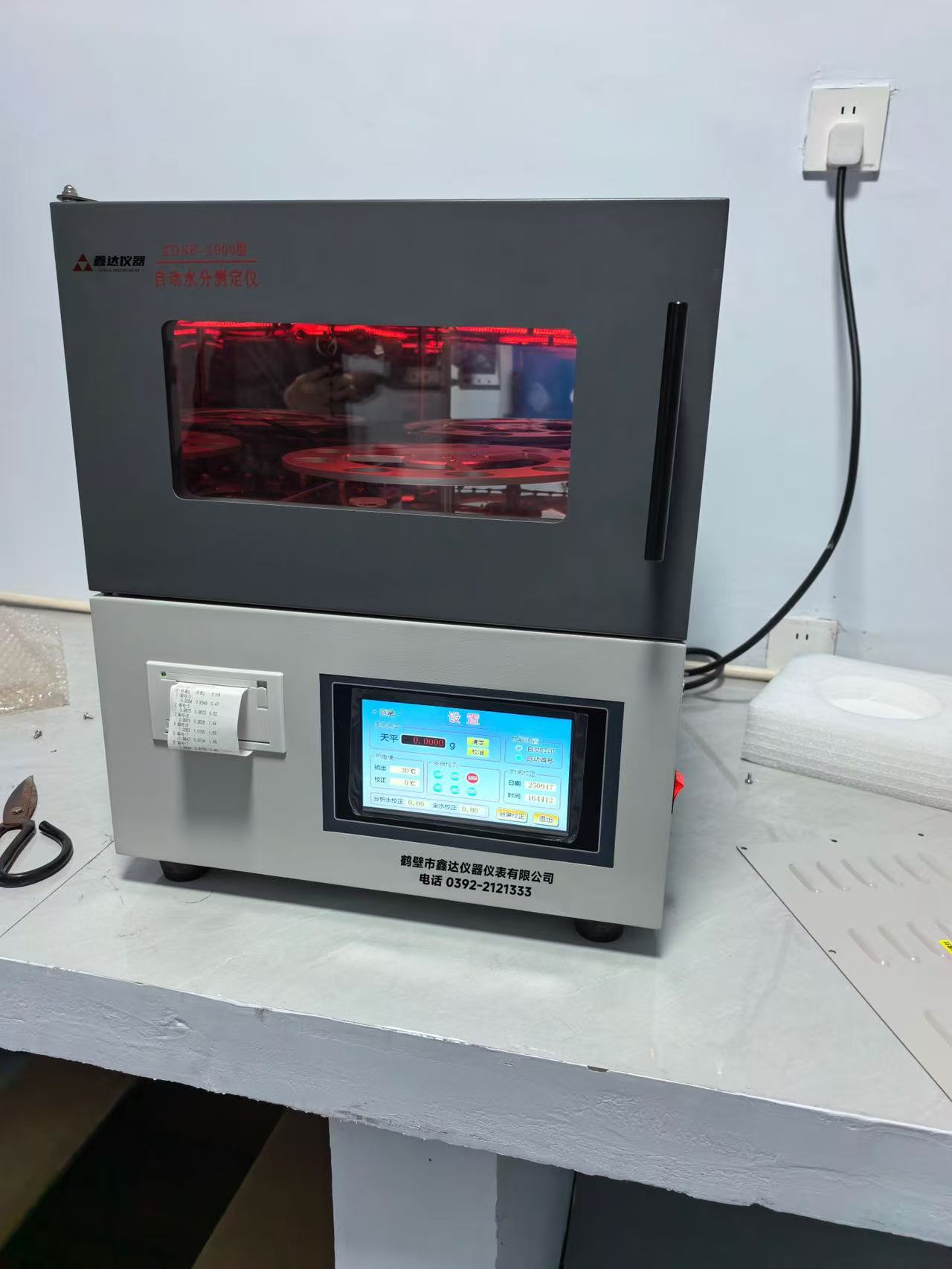

XDSF-2000Fully automatic moisture analyzer for combustible materials of coal, brick blanks and construction waste

1.All three models can be controlled by a single-chip microcomputer with Chinese character prompts. They adopt the latest control electrical appliances and have a high degree of integration. The instrument is highly intelligent, automated and has more stable and reliable performance.

2. Measurement data, status indication, Chinese menu operation prompts, automatic printing, clear and intuitive.

3. It adopts original imported electronic balance, ensuring stable, fast and reliable weighing.

4.When there is an error in weighing, it will automatically re-weigh. The instrument will automatically determine whether there is a container and whether there is a sample.

5. It is equipped with two built-in measurement programs: rapid and constant weight, as well as two drying methods: microwave and infrared. The drying time and drying method can be set arbitrarily by the user of the measurement program. Microwave drying is highly efficient and takes a short time. Infrared drying is suitable for coal types with coke, flammable materials and high metal content.

6 The program automatically corrects the weighing error caused by thermal balance. It has a power-off protection function.

7. Built-in calendar clock ensures that set parameters and measurement data will not be lost due to power failure.

8. Built-in printer. The measurement data is automatically printed or reprinted.

9. Non-repetitive sample codes are automatically generated every day.

10.Users can be optionally equipped with an RS232 serial interface and dynamic measurement and control software to connect to a computer for operation and data processing by the computer.

Technical specifications and parameters of microwave moisture Meter:

Microwave input power: ≤1400w

Microwave Output Power: ≤900w

Microwave Frequency: 2450MHz

Infrared Power: ≤1200w

Balance weighing range: ≤310g

Balance resolution: 0.001g/0.0001g

Moisture determination accuracy: ≤0.4%

Number of test samples: 8

sample weight 8-14g

test time: 10-20

minutes Working power supply: AC220±20V 50Hz

Dimensions (mm):510x380x540
